DE Stock 3KW Huanyang 220V VFD Inverter Input 1 / 3 Phase Output 3 Phase Spindle Speed Controller

Name: DE Stock 3KW Huanyang 220V VFD Inverter Input 1 3 Phase Output 3 Phase Spindle Speed Controller
Brand: RATTM MOTOR
Price: 117 USD

DE Stock 3KW Huanyang 220V VFD Inverter Input 1 / 3 Phase Output 3 Phase Spindle Speed Controller Manufactures

Brand Name : RATTM MOTOR

Model Number : 3KW 220V

Certification : CE

Place of Origin : China

MOQ : 1

Price : USD117-135/Piece

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 100Pieces/day

Delivery Time : 3-5 work days

Packaging Details : carton case, 45*25*35

Product Category : Inverter

Output Power : 1 - 200KW

Output Current : 220V+/-15%

Output Voltage : 215V-235V (220V type)

Input Phase : 1 or 3 Phase

output frequency : 1-400hz

Contact Now

3KW 220V Variable Frequency Drive VFD Inverter Input 1 Or 3 Phase Output 3 Phase For 3KW CNC Spindle Motor

Good News: We have warehouse in some countries, check as bellows

Oversea warehouse-Fast Shipping-Free VAT Tax
Warehouse location	Shipping Carrier	Delivery Countries	Delivery Time	Advandge
Germany&Czech Republic	DHL/GLS	EU Countries	3-12 Business days	1. Fast Delivery 2. No VAT Tax
United States	UPS/USPS	United States only	3-12 Business days	1. Fast Delivery 2. No VAT Tax

Package include:

1 x 3KW Inverter VFD 220V HY Brand+2M Extension cable

1 x English user manual of inverter

Product Feature:

1) PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;

2) Easy PLC function can realize 16 legs of speed and inverter control function;

3) RS485 communication port, adopting standard international MODBUS main circuit control;

4) With extremely strong anti-jamming capability

5) Low output ratting torque0.5HZ-150%, low speed running ability;

6) Carrier adjustable by 16KHZ, completely soundless working environment;

7) Broad voltage working area, normal running in 304V-456V;

8) Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;

9)
Various control technique by both synchronization and
non-synchronization, dynamically realize fast starting without changing
brakes;

10) With perfect error protection and short circuit starting protection capability;

Tech parameters:

1) Input Voltage: 220V(+/-15%)

2) Output Voltage: 0-220V
3) Input Frequency: 48-63 Hz
4) Output Frequency: 0-400 Hz
5) Input Phase:1or 3 phase
6) Output Phase: 3 phase

7) Power: 3Kw

8) Warranty: 1 year from the date you purchased

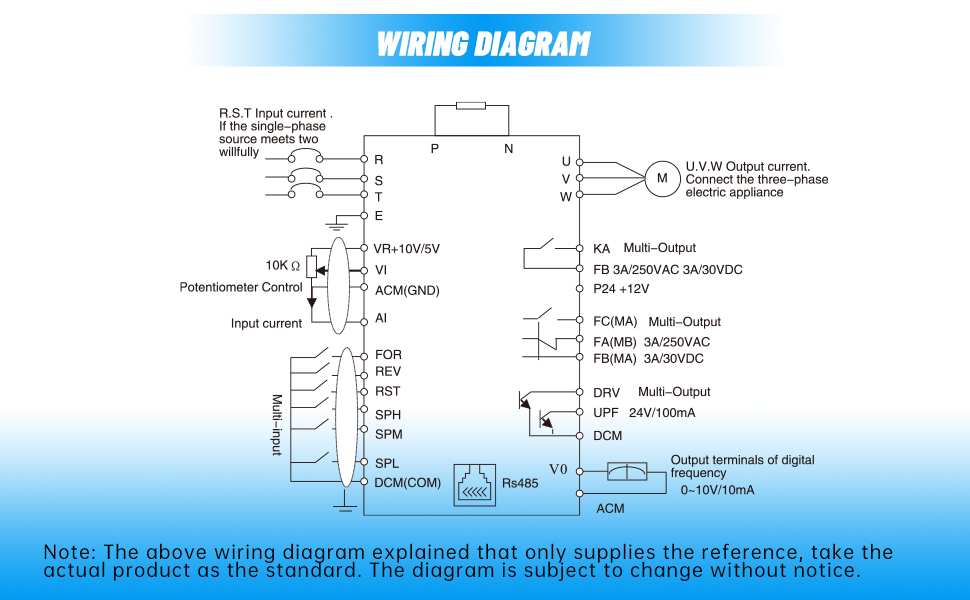

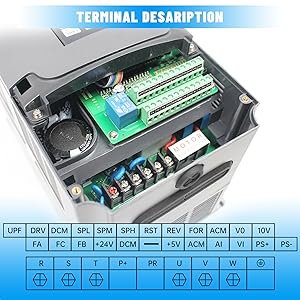

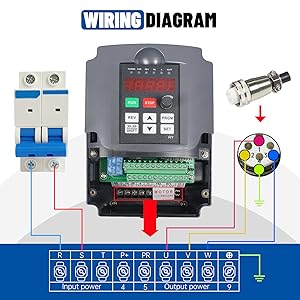

1)PID control; advanced calculus PID closed-loop arithmetic 2)Easy PLC function can realize 16 legs of speed and inverter control function; 3)Low output ratting torque 0.5HZ-150%, 4)Carrier adjustable by 16KHZ 5)AVR technique, for ensuring the inverter load capability; 6)Various control technique by both synchronization and non-synchronization	7)A potentiometer can be used to adjust to the rotation speed you want. 8)RS485 communication port, adopting standard international MODBUS main circuit control 9)Supports external potentiometer control,pls connect the "FOR" and "DCM" terminals,than set PD001=1 10) Supports mach3 function and RS-485 communication	VFD's U= Spindle's 1 VFD's V= Spindle's 2 VFD's W= Spindle's 3 Connect any "R" & "T" of the inverter to "220VAC" input wire. Notice: If your motor's speed is not 400hz 24000rpm,you need to change the drive parameters,then connect 3 phase motor,before you change the parameters,you need Factory Reset,then change PD013 to 8,then you can change the parameters.

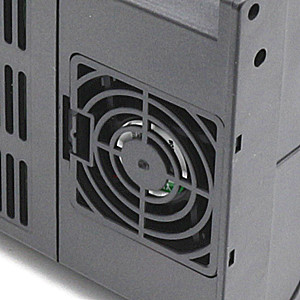

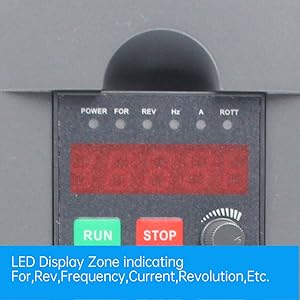

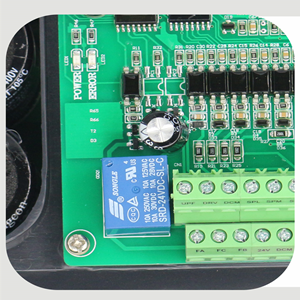

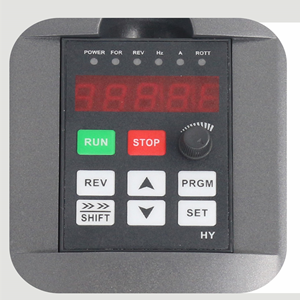

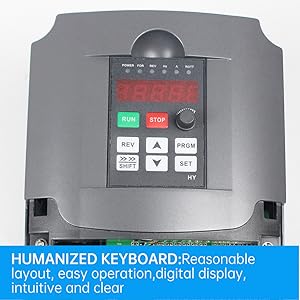

Keyboard UP: Progressively increase data or function codes. DOWN: Progressively decrease data or function codes. RUN: Run key SET: Enter menus step-by-step, save setting parameters. PRGM: mainly used to switch monitoring state,exit to previous menu.Display output current. SHIFT: Switch monitoring parameters at monitoring state, at secondary menu, move data box to process editing position. JOG: FOR / REV switch	DC cooling fan The inverter is equipped with a DC cooling fan, which has low noise and large air volume during operation,which is very conducive to heat dissipation and improves the stability of the product at work.	High performance montherboard With overload,fuse broken-motor stops, over-voltage, low-voltage ,restarted by frequency track after instantaneous stop, electronic circuit,over-heat, running, direct start after power on, fault reset, parameter lock PID, ect.


Our inverter is running 400Hz 3 phase 220V motor by default.If your 3 phase motor is 400Hz, you can check the default setting and run it directly. pd003=400 pd004=400 pd005=400 pd072=400 pd144=3000	If your 3 phase 220V motor is 50Hz, please refer to the following settings. pd013=8 to restore factory settings first pd003=50 pd004=50 pd005=50 pd072=50 pd144=3450 pd002=1 pd070=1	If your 3 phase 220V motor is 60Hz, please refer to the following settings. pd013=8 to restore factory settings first pd003=60 pd004=60 pd005=60 pd072=60 pd144=3450 pd002=1 pd070=1

DE Stock 3KW Huanyang 220V VFD Inverter Input 1 / 3 Phase Output 3 Phase Spindle Speed Controller

Application

Widely used in 3 phase Spindle motor,CNC Router, CNC machine, milling machine, drilling machine, wingding machine, extruder, slitter, mixer, winder, compressor, ventilator, pump, grinder, conveyor, elevator, centrifuger and other speed control machines.
