EU Stock 3018 PRO CNC Wood Router 3 Axis Engraving Machine GRBL Controller ER11

Unassembled

After receiving the goods, you only need to simply assemble the machine according to the user manual.

Power supply: 24V 5.6A power adapter (input voltage 110-240V)

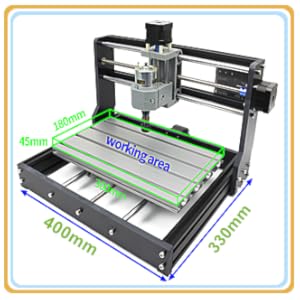

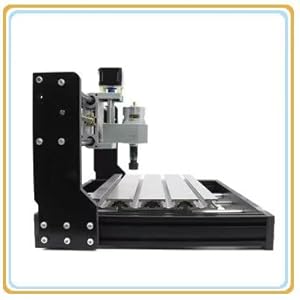

Size

• Dimensions: 42x35x27cm (16.53 x 13.78 x 10.63”)
• Maximum stroke: 30x18x4.5cm (11.8 x 7.1 x 1.8”)
• Processing thickness: 4.5cm(1.8")

Feature

• Material: PA6 Nylon + Aluminum profile
• Processing accuracy: About 0.2mm

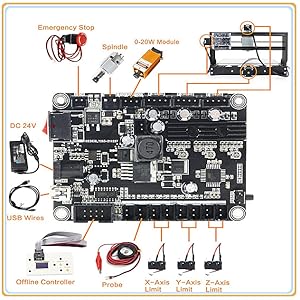

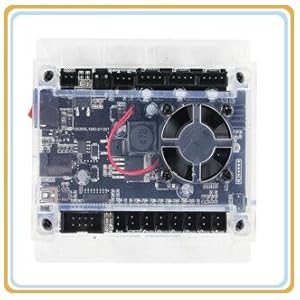

GRBL controller board

• Connection: USB (USB-CH340)
• Software: GRBL controller, UniversalGcodeSender
• Input voltage: 12-24VDC
• Master chip: atmel 328P (arduino nano)
• Spindle drive chip: MOSFET (recommendation 24V, current : within 10A
• Support stepper motor: 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor Nema17/Nema23)
• Power Interface: 5.5-2.5mm DC interface
• Support 3-pins module: support 0.5W-20W module

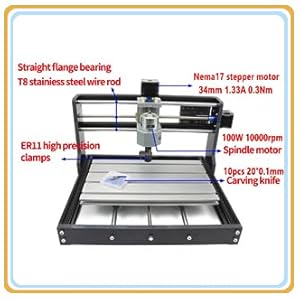

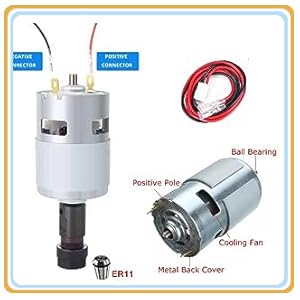

775 spindle motor 100W 10000RPM

• Parameters of this 775 spindle : 100W spindle motor (12-36V) 24V:10000rpm/min
• Mounting hole diameter: M4 screw hole; Mounting hole pitch: about 29mm.
• Spindle PWM speed: Support;power 0-100% adjustable
• Shaft diameter: 15mm;
• Motor diameter (without magnetic sleeve): 42mm
• Drill bits: 10pcs tip 0.1mm ,20 degree,diameter3.175mm.

Plate clamps

• Add the fan port to force heat dissipation
• Cancel the drive module,use integrated imported stepper motor drive,with short circuit protection,and integrated heat dissipation aluminum alloy.

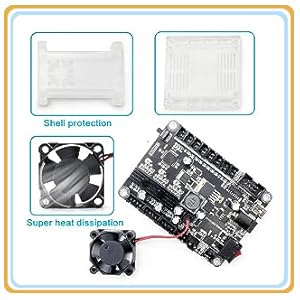

• Add the outer casing, not only protect control board in transit, to avoid short circuit problem during use.

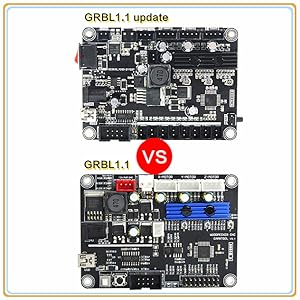

Compared with the old version

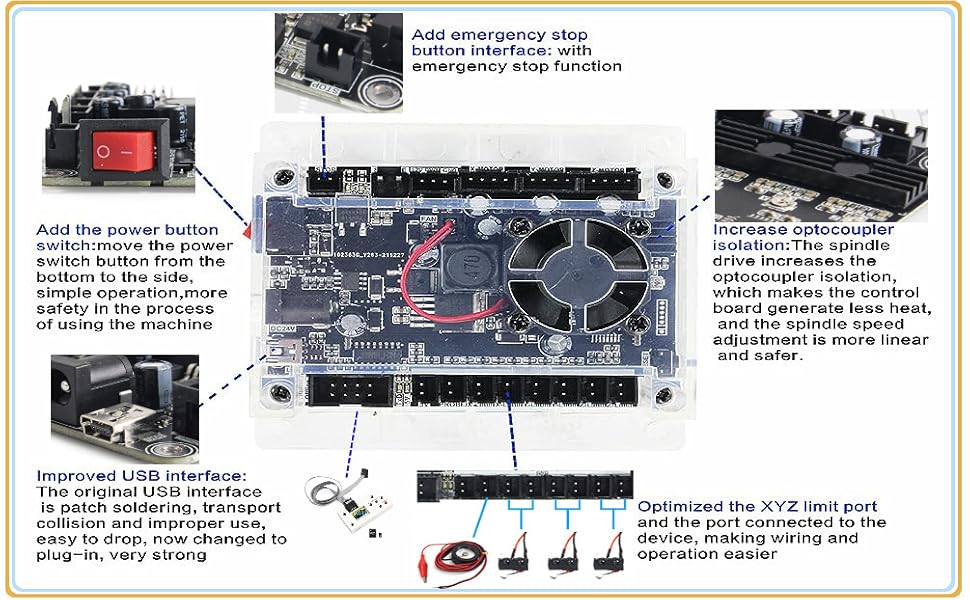

• Add the function of X/Y/Z axis limit switches,optimized the XYZ limit port and the port connected to the device,making wiring and operation easier.After installing the limit switch, when the XYZ axis moves beyond the travel of the engraving machine, the limit switch will trigger the machine to automatically stop the movement.
• Add the function of emergency stop button,this function can be used when an emergency stop is required at work, making our work safer and more efficient.
• Add the power button switch and move the power switch button from the bottom to the side,simple operation,more safety in the process of using the machine.

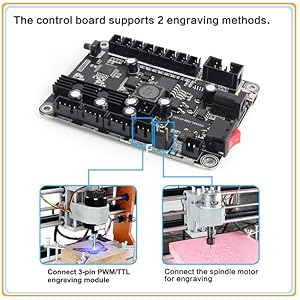

Support two engraving methods

• The control board support two engraving methods,our package comes with a spindle motor but without the module in the picture above.

Q&A

Q: What materials can the milling cutter generally engrave or cut?

A: Wood, acrylic (acrylic), pcb, pvb, soft metal, iron, glass, stone etc.

Q: What thickness of wood or acrylic can generally be cut by module?

A: 3-5mm wood board (acrylic), speed setting 100, power setting 1000;

Multiple cuts can cut 12mm wooden boards by spindle.

Applications

• CNC 3018 PRO Mini CNC machine small size, light weight, USB interface, GRBL control systems, great cnc router machine for beginers;

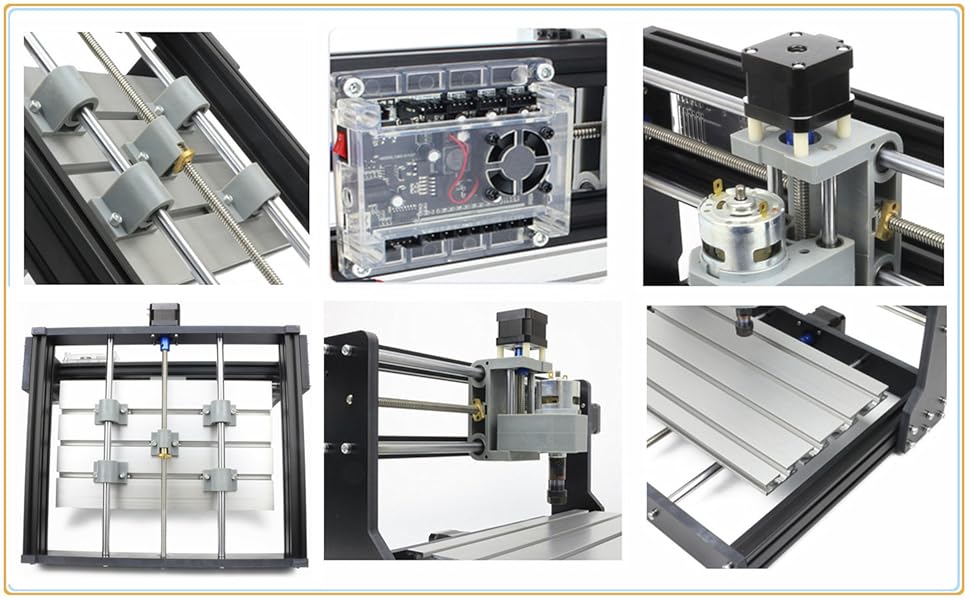

• 3018 PRO cnc machine is very easy to install,with stable structure.
• Main application:can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.soft metal like copper and aluminum and other metal materials, but can not carve hard metal, jade or other very hard texture of the items.
• If you change the spindle to a module,then also can carve the kraft paper, wood, leather(wallet), bamboo, rubber.

More applications

Q: The X,Y and Z axis of the machine cannot be moved,what should I do?

A: First check whether the wires are correctly connected, whether the power switch of the control board is pressed, and then check whether the coupling is off.

Q:What should I do if the control board cannot be connected? A:Exit the software, unplug the wire, and reconnect it. Or update the firmware.

Q: How to modify the parameters when the limit switch is activated?

A: Enter 21=1 and 22=1 commands.

Q: The engraved image is reversed,what should I do?

A: Enter 3=2 or RST=*command

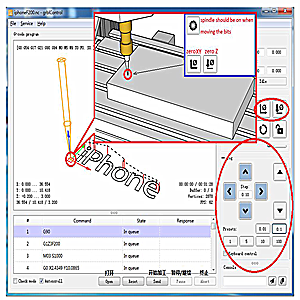

GRBL software

• Our parcel include a 4G USB flash drive,you can download the english user manual and GRBL software from the flash drive.
• File formats supported by the software: *.nc, *.ncc, *.ngc, *.tap,*.txt and *.cnc.
• Software used to create Gcode: Carbide Create, Artcam, MeshCam, Fusion360, Inkscape etc.
